Instrument Overview

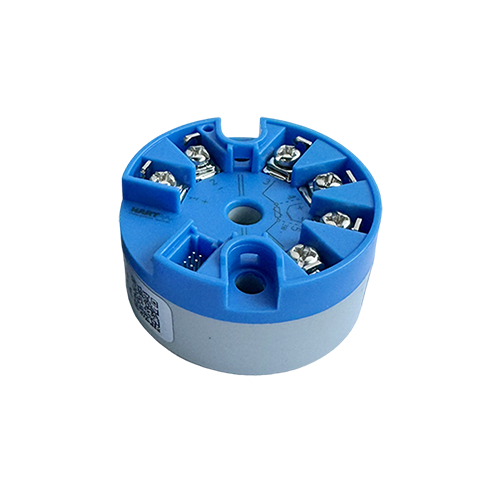

The YGQW7761 is a field-mount, DIN Form A head-mounted temperature transmitter unit. It is used with industrial thermocouples and RTDs and uses a two-wire transmission system (where the two wires serve as both power supply and signal output lines).
It converts industrial thermocouple and RTD signals into a linear 4~20mA output signal related to the input signal or temperature signal. It provides flexible and reliable performance in process environments. Compared to directly connecting the sensor, it reduces the need for expensive extended wiring and multi-port devices, thus reducing overall installation costs and fully leveraging the benefits of the complete temperature point solution.
Technical features
| Precision: ±0.1% | RTD or TC | Intelligent static pressure and temperature compensation |
| 4~20mA DC current output | Standard HART 7 protocol communication | Operating temperature: -25~80°C |
| Relative humidity: 5%~95% | Power consumption: ≤ 0.5W | Environmental impact coefficient: δ ≤ 0.05%/℃ |
| Built-in three-button quick operation for on-site adjustment | Protection level: IP66 | Explosion-proof rating: Ex db ⅡC T6 Gb |

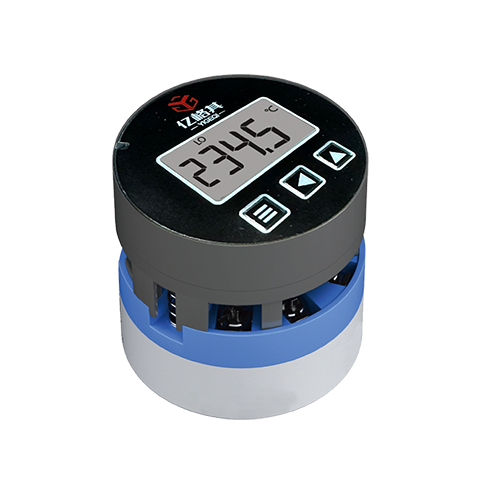

| Multiple display functions (°F, °C, °R, K, Ohm, mV) | Self-diagnostics | LCD display |
Application areas
Oil/Petrochemical/Chemical: Used for temperature monitoring in reactors, storage tanks, pipelines, and other equipment.
Electric Power/City Gas/Other Public Utilities: Used for temperature monitoring in generators, transformers, steam turbines, and other equipment.
Pulp/Paper Making: Used for temperature control in pulping, bleaching, and paper machine processes. Steel/Non-ferrous Metals/Ceramics: Used in industrial production processes for controlling temperature in boilers, furnaces, reactors, and other equipment.
Mechanical Equipment/Shipbuilding: Used to monitor and control the temperature of critical systems to ensure safe, efficient, and comfortable operation.
