Instrument Overview

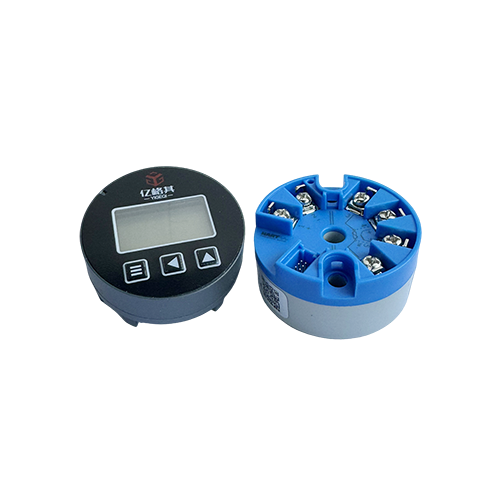

By adding the YGQT series transmitter display kit, the transmitter can have a display function to meet customer on-site display needs. Universal 33mm mounting hole distance, compatible with E+H, Rosemount, Siemens, ABB, and other domestic and foreign manufacturers' temperature transmitter modules.
Typically used in combination with 2-wire temperature transmitter modules, it is loop-powered, requiring no external power source. It can be matched with various transmitters for temperature, pressure, flow, and level, and is suitable for transmitters requiring local indication or for use in low-temperature applications. The product features a circuit designed for immunity to Electrical Fast Transients (EFT/Burst) and Radio Frequency (RF) electromagnetic fields. It achieves Level 4 immunity for EFT/Burst and radiated RF field immunity of >10V/m (80 MHz to 1000 MHz). This product effectively protects against damage caused by line faults, switching operations, operating frequency converters, and on-site electric welders during construction.
Technical features
| Configuration method: Button configuration | Maximum load: RL ≤ (Ue-2.9V)/0.025A (current output) | Measurement range: -9.9.9.9~9.9.9.9 |
| Power supply: Loop-powered | Limit current: ≤ 25mA | Display accuracy: 0.1%FS + 1 digit |
| Loop voltage drop: 2.9V | Temperature drift: 0.008%FS/1°C | Ambient temperature: -40~85°C |
| Output signal: Analog 4~20mA (Two-wire) | Display type: LED | Ingress Protection: IP67 |
| Range overflow allowed: 35mA~25mA (linear) | Display height: 9.2mm | Supported transmitter mounting hole distance: 33~36mm |
Application areas
Oil/Petrochemical/Chemical: Used for temperature monitoring in reactors, storage tanks, pipelines, and other equipment.
Electric Power/City Gas/Other Public Utilities: Used for temperature monitoring in generators, transformers, steam turbines, and other equipment.
Pulp/Paper Making: Used for temperature control in pulping, bleaching, and paper machine processes. Steel/Non-ferrous Metals/Ceramics: Used in industrial production processes for controlling temperature in boilers, furnaces, reactors, and other equipment.
Mechanical Equipment/Shipbuilding: Used to monitor and control the temperature of critical systems to ensure safe, efficient, and comfortable operation.
