Instrument Overview

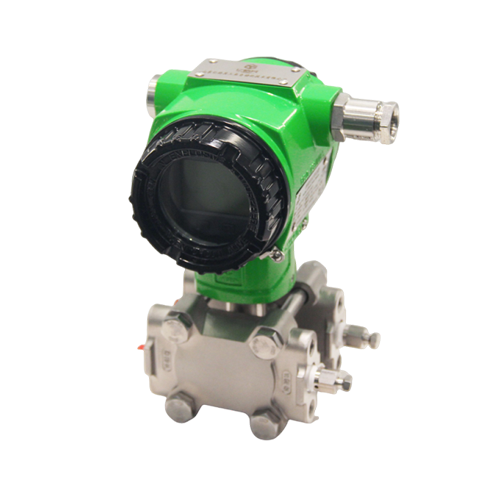

As an Explosion-proof differential pressure transmitter, it adopts an explosion-proof shell design and passes strict explosion-proof certification. This Explosion-proof differential pressure transmitter, equipped with a robust Differential pressure sensor, effectively prevents internal electric sparks or high temperatures from igniting external flammable media, making it ideal for hazardous areas like petroleum and petrochemical industries. In crude oil pipeline monitoring at refineries, the Explosion-proof differential pressure transmitter ensures safe, stable data collection, with its Differential pressure sensor guaranteeing accuracy for pipeline pressure balance control, thus avoiding pressure-related accidents.

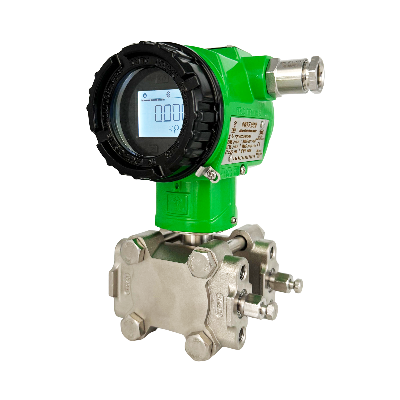

The Differential pressure sensor, using an imported single-crystal silicon chip, delivers excellent linearity and long-term stability. Paired with intelligent temperature compensation, it operates stably in -40~85℃ environments, offsetting temperature impacts—vital for power industry boiler flue negative pressure measurement. This Differential pressure sensor, integral to the Explosion-proof differential pressure transmitter, High-pressure differential pressure transmitter, and Pipeline pressure transmitter, ensures accurate signal output even amid severe temperature fluctuations. The backlit LCD, compatible with multiple units, complements the Differential pressure sensor’s precision, allowing clear on-site data reading in dim conditions.
Technical features
| Precision: ±0.075% | Range: -10MPa~10MPa | Ambient Temperature: -40 to 85°C |
| Turndown Ratio: 60:1 | Standard HART 7 protocol communication | Cable Entry: M20x1.5, 1/2" NPT |
| Bluetooth wireless connectivity | Remote debugging via mobile app | External Terminal: M4 screw |
| Built-in dual-button for quick local adjustment | Comprehensive self-diagnostic functionality | Process Connection: 1/4" NPT |
| Intelligent static pressure and temperature compensation | Backlit LCD display with multiple engineering units (Pa, kPa, MPa, bar, mbar, Torr, atm, inH₂O, inHg, ftH₂O, mmH₂O, mnH₂O, mH₂O, mHg, g/cm2 , kg/cm2 , m, mm, cm, g/m³, kg/m³) | Installation: Mounts on a 50 mm (2-inch) pipe with a U-bolt. |
Application areas
Petroleum/Petrochemical/Chemical: Precise measurement of pressure and level in pipelines and storage tanks. Electricity/City Gas/Other Public Utilities: Places requiring high stability and high precision pressure and measurement.
Pulp/Paper: For environments requiring resistance to chemical and corrosive liquids in pressure measurement.
Steel/Non-ferrous Metals/Ceramics: For furnace pressure and negative pressure measurement in high-stability and high-precision environments.
Mechanical equipment/shipbuilding: Used in environments requiring stable measurements under strict control of pressure and other parameters.
